Electric wire rope hoist HUSAR WINCH BST P 150/300 – 150/300 kg
149.00 € VAT incl.( 123.14 € VAT excl. )Aproximate delivery time: 7 - 10 w. d.Out of stock.Contact us Inform when we have the item on stockLeasing calculators- klix_pay_later
-

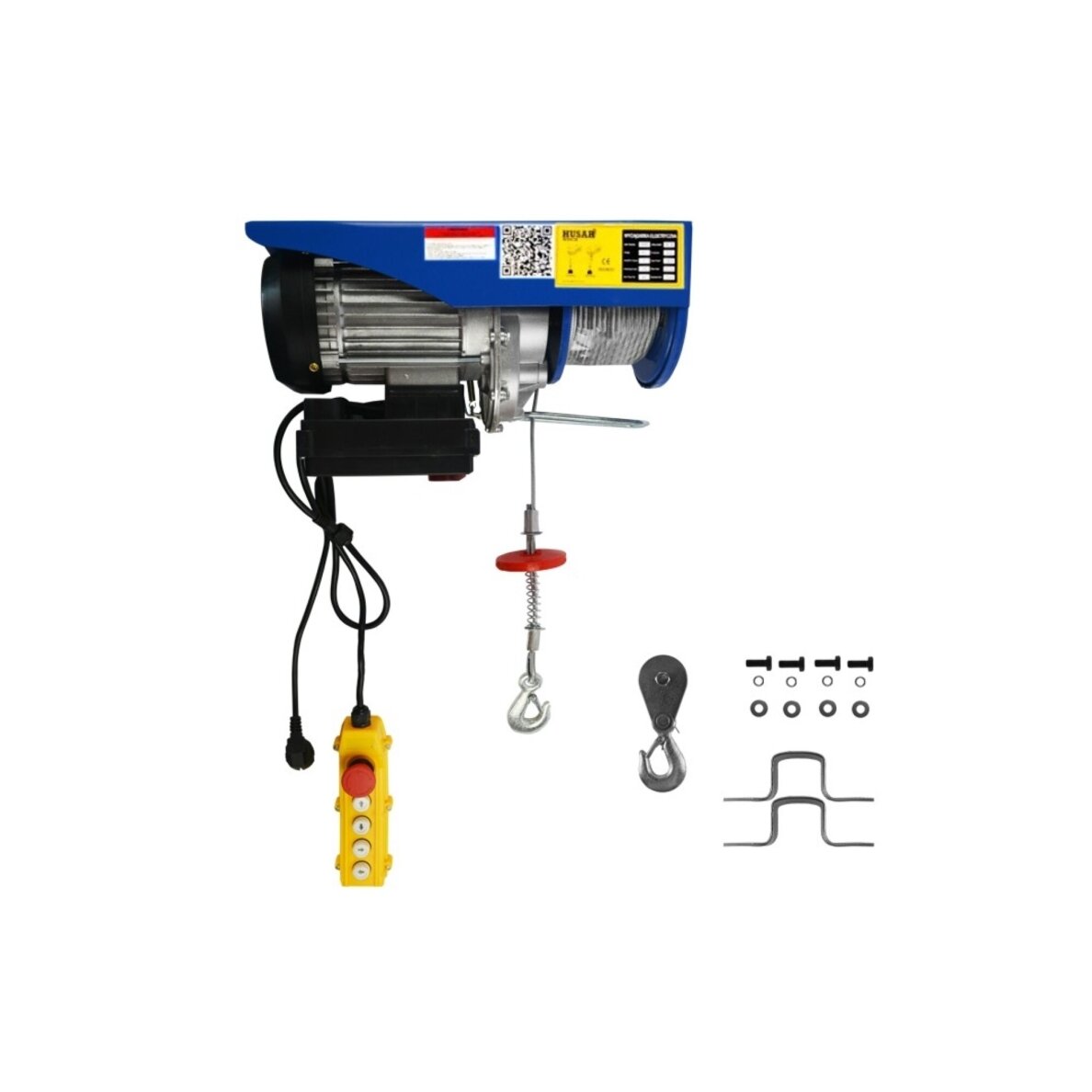

HUSAR WINCH BST P 150/300 – an electric wire rope hoist designed for lifting and lowering loads in workshops, car repair shops, warehouses and construction sites.
A compact device with a 650 W motor allows lifting loads up to 150 kg using a single rope or up to 300 kg – using a double rope with a pulley.
The hoist operates when connected to a 230 V power supply. An automatic brake, limit switch and wired control pendant ensure convenient and controlled lifting and lowering of loads.
Main advantages
- Lifting capacity up to 300 kg – 150 kg when using a single rope and 300 kg when using a double rope with a pulley.
- 650 W motor power – for efficient lifting and lowering of loads.
- Lifting height up to 18 m – 18 m when using a single rope or 9 m when using a double rope.
- Automatic brake – helps hold the load when the lifting mechanism is stopped.
- Limit switch – limits the lifting travel when the set end position is reached.
- IP54 protection rating – protection against dust and water splashes.

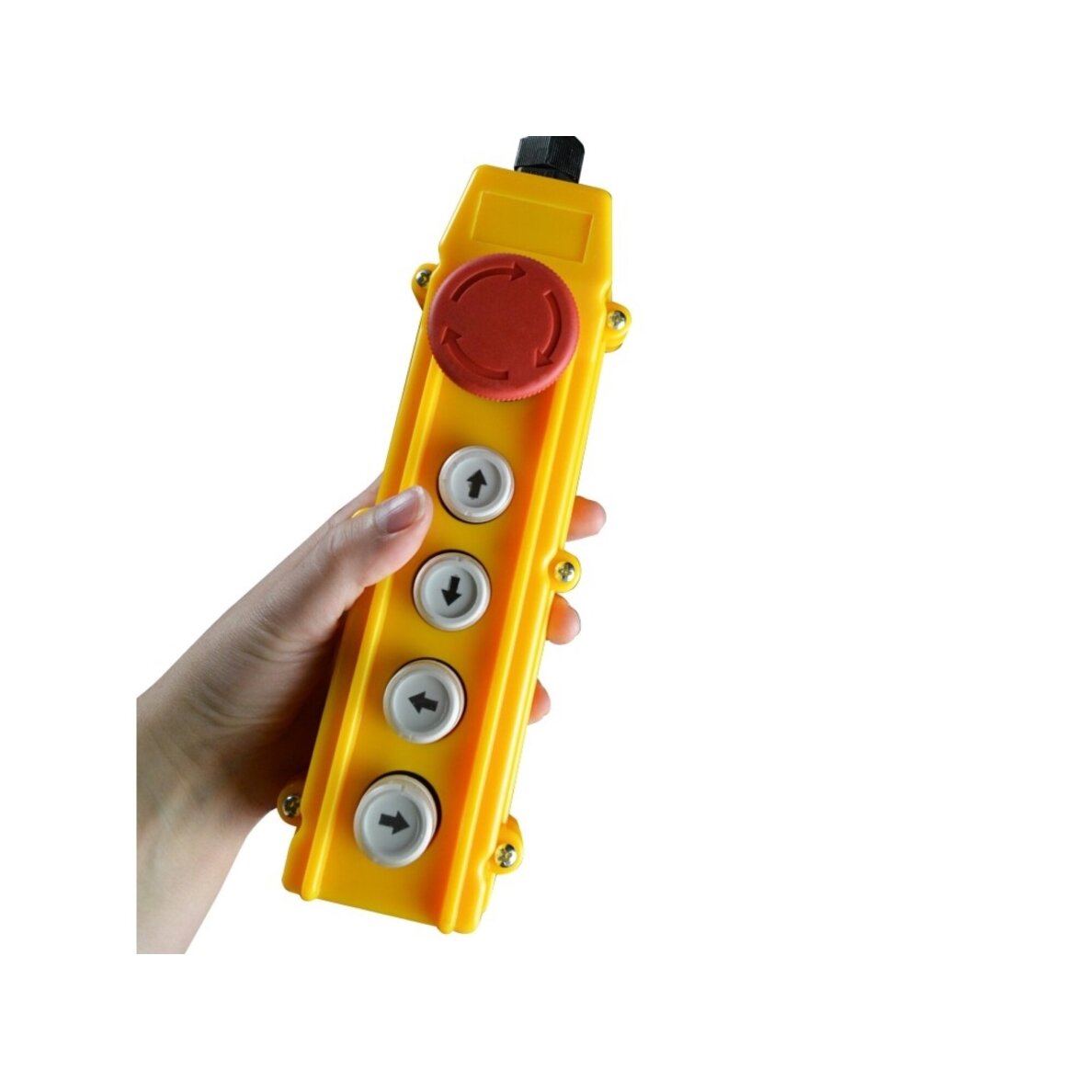

- Wired control pendant – allows convenient control of lifting and lowering the load.
Technical specifications
Parameter Manufacturer data Lifting capacity with single rope 150 kg Lifting capacity with double rope 300 kg Lifting height with single rope 18 m Lifting height with double rope 9 m Lifting speed with single rope 10 m/min. Lifting speed with double rope 5 m/min. Motor power 650 W Supply voltage 230 V Rope type Steel Rope diameter 3 mm Rope length 18 m Brake Automatic Limit switch Yes Duty cycle S3 20 % Protection rating IP54 Power cable length 65 cm Control pendant cable length 100 cm Device weight 9,3 kg Applications
Electric wire rope hoist HUSAR WINCH BST P 150/300 is suitable for various load lifting tasks:
- Car repair shops and workshops – for lifting car parts, engines and other mechanical components.
- Warehouses – for lifting tools, equipment and other loads.
- Construction sites – for lifting building materials and tools.
- Production facilities – for lifting and lowering parts and equipment.
HUSAR WINCH BST P 150/300 – a practical electric wire rope hoist designed for lifting loads weighing up to 300 kg.
